STN 40x2 Monochrome Lcd Display Module Low Power Consumption RYB4002A

Product Categories

Royal Display Co.,Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: STN 40x2 Monochrome Lcd Display Module Low Power Consumption RYB4002A
Brand: ROYAL DISPLAY
Price: 1 USD

Brand Name : ROYAL DISPLAY

Model Number : RYB4002A

Certification : SGS ROHS

Place of Origin : CHINA

MOQ : 500pcs

Supply Ability : 500k/Month

Delivery Time : 25~28 Working Days

Packaging Details : 130pcs/CTN 7.0Kg L45*W36*H32CM

Product Name : STN 40x2 Character LCD Module RYB4002A

Model No. : RYB4002A

LCD Type : STN

LED Backlight : White

Price : Negotiable

Contact Now

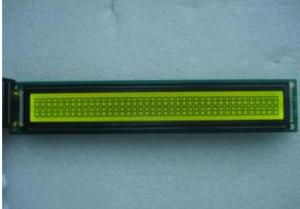

RYB4002A LCD Display, 40x2 with Yellow-Green or White LED Backlight

Item	Description
Product Name	40x2 COB LCD Module
Model No.	RYB4002A
Dot Format	40 x 2
Outline Dimension(mm)	182.0 x33.5MAX
Assem. Size(mm)	175.0 x 30
Viewing Area(mm)	154.4x26.5
Character Size( mm)	3.7 x 5.95
Viewing Angle	6 O' clock
LCD Type	STN-Gray, STN-blue VA
Backlight	White LED backlight or No backlight
Driver IC	ST7066U
Power supply	5V
Interface	Parallel
Operating Temp	-20º C~70º C
Storage Temp	-30º C~80º C

1. Typical Applications:

Telephone, Home Automation, Industrial Instruments, Price Tag, Printer, Fax, etc

2. Features:

Transmissive, Transflective and Reflective Mode

Duty Ratio: 1:8~1:34 for one to four line characters

Wide Operation & Storage temperature range

High reliability

Low power consumption

STN 40x2 Monochrome Lcd Display Module Low Power Consumption RYB4002A
